Small Size Load Cells

Small Size Load Cells

Micro Load Cells, Small Load Cell, Miniature Load Cell Model: SL-04 CAPACITY: 0.5kg-50kg Features: very small size, low capacity, Alloy Aluminum material,,Low Profile,Colourless anodized, single point load cell, equally suitable for simple weighing scales or for industrial measurement and...

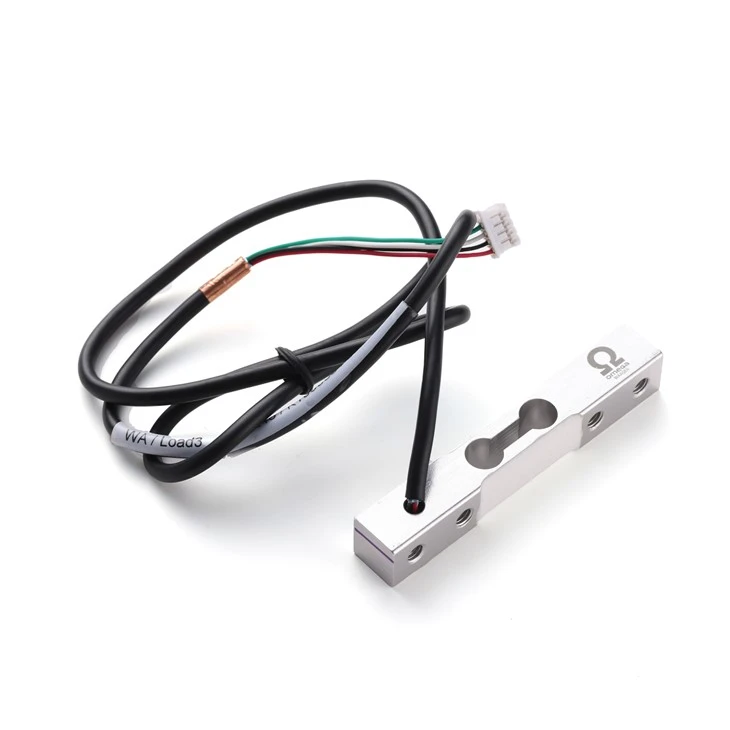

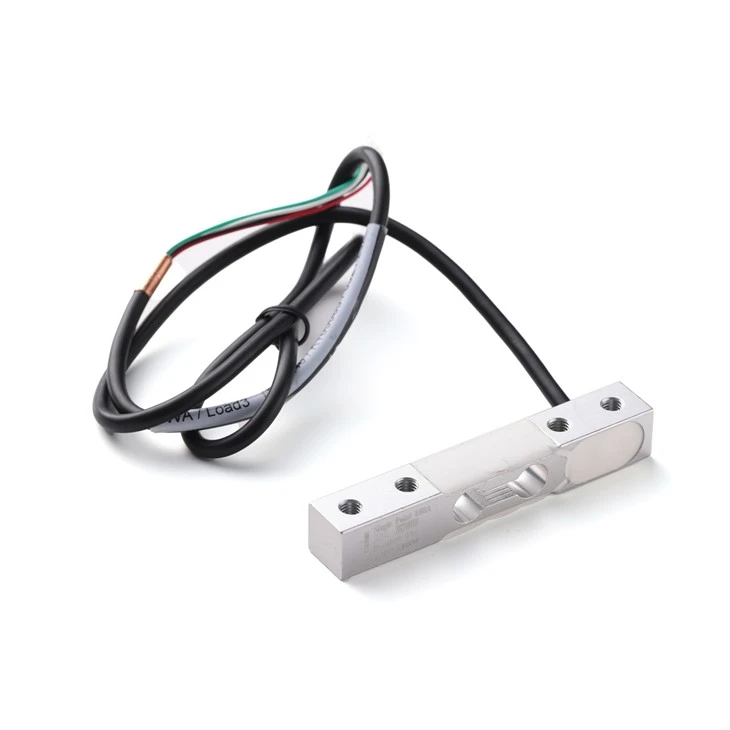

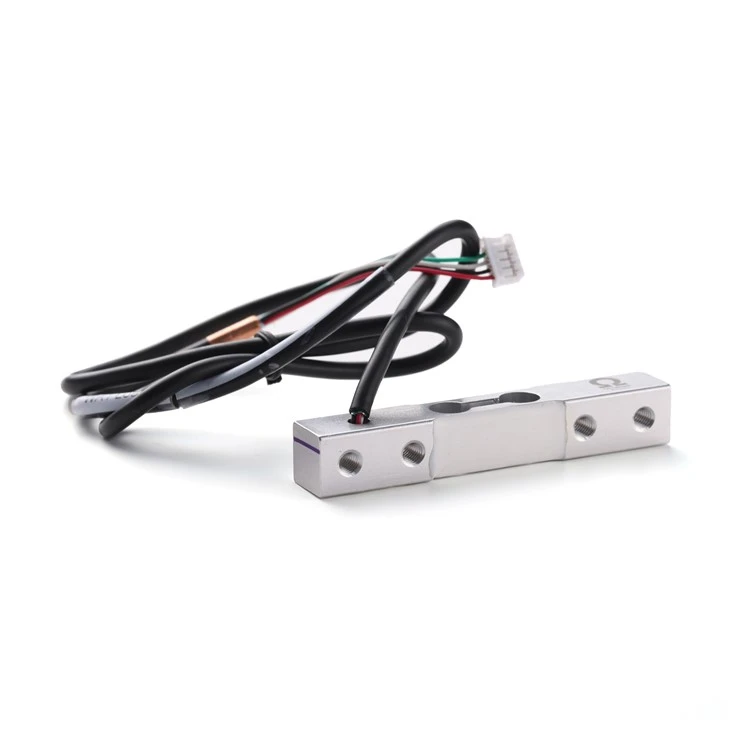

Micro Load Cells, Small Load Cell, Miniature Load Cell
Model: SL-04
CAPACITY: 0.5kg-50kg
Features:
very small size, low capacity, Alloy Aluminum material,,Low Profile,Colourless anodized, single point load cell, equally suitable for simple weighing scales or for
industrial measurement and medical applications. Typical applications include packing machines, filling machines, weaving machines, industrial process control, and low-force medical applications, as well as small-platform weighing


Dimensions:(mm)



SPECIFICATION

Precision:

0.05% FS

Rated Output:

1.0 ±0.01 or 2.0 ±0.01

Creep(%F.S/30min):

±0.05

Zero balance(%F.S):

±1.0

Input resistance:

1000±10

Output resistance:

1000±5

Insulation resistance:

≥5000(100VDC)

Temp. effect on span(%F.S/10℃):

±0.03

Temp. effect on zero(%F.S/10℃):

±0.03

Use temp. range(℃):

-20~+40

Excitation voltage(V):

9~12(DC)

Safety overload (%F.S)

150%

Ultimate overload (%F.S)

200%

Defend grade

IP66

Cable Length:

220 -660 mm

Wire Connection Method

RED=Input+

BLACK=Input-

GREEN=Output+

WHITE=Output-
