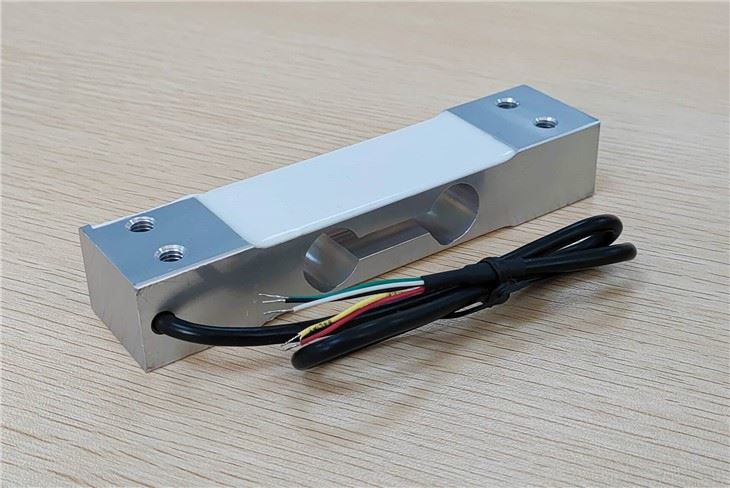

Parallel Beam Load Cell ,Single Point Load Cells, Parallel Type Load Cells,
Model: SPA- 01
|
|
Capacity: 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 80kg, 100kg, 120kg
Features:
Designed for off-center load, Maximum platform size: 250x250 mm (according to capacity), Small sized, Material: anodized aluminium alloy - Protection: IP 65
Easy to install, Economical and high accuracy.
Application: Bench scales, Small hopper weighing, Filling, packaging and batching
Dimensions:(mm)
Parameters: | |
Precision: | C3 |
Ful Scale Output: | 2mv/v±0.1 |
Creep(%F.S/30min): | ±0.02 |
Zero balance(%F.S): | ±1.0 |
Input resistance: | 405±10 |
Output resistance: | 350±3 |
Insulation resistance: | ≥5000(100VDC) |
Temp. effect on span(%F.S/10℃): | ±0.02 |
Temp. effect on zero(%F.S/10℃): | ±0.02 |
Use temp. range(℃): | -20～+55 |
Excitation voltage(V): : | 9～12(DC) |
Recommend Voltage: | 10V |
Safety overload (%F.S) | 150% |
Ultimate Overload(%F.S) | 200% |
Defend grade | IP65 |
Cable Length: | 0.45meters -3 meters |
Connection: | Red (Input+), Black(Input-), |
