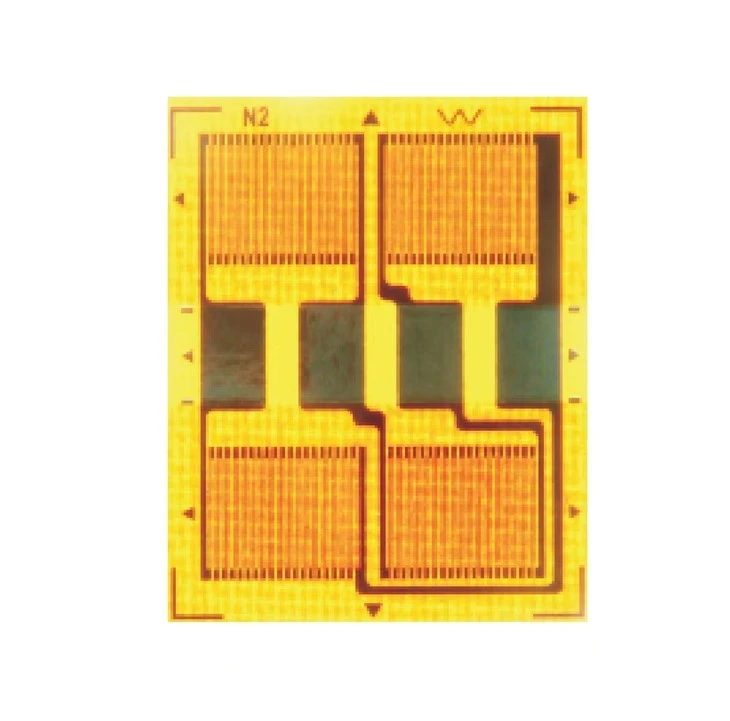

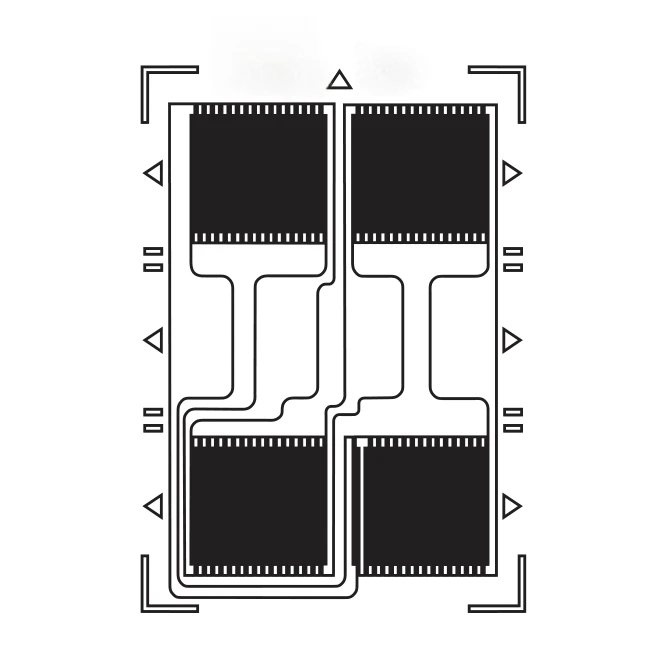

Four Grid Full Bridge Strain Gauges Customized Strain Gage
Model: FG series
Full Bridge Structure, Good quality, low costs, fast delivery
Carrier Material: Imported Phenolic Aldehyde /Polyimide/Epoxy
Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
Resistance: 350,500,1000 Ohm
Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃
Each package 40 pcs, can be soldered copper wire, good performance
|
Model |
Measuring Grid Size (mm) |
Carrier Size (mm) |
|
BF350-2FG |
2.1×2.7 |
9.8×6.9 |
|
BF1000-2FG |
2.1×3.5 |
9.6×7.8 |
Note: Other models and sizes are available according to customer request
Advantages:
1. No MOQ limitation.
2. Customizable
3. Offering strain gauges sticking service
Torque Measurement: Used in torque sensors to measure the rotational forces on a shaft.
Shear Force Measurement: Employed in shear beam load cells and other weighing devices to measure forces that cause shear stress.
Transducer Design: Ideal for the internal elements of load cells and other sensors requiring accurate shear or torque detection.
