Half Bridge Foil Resistance Strain Gauges for load sensing
Model: FB-A series

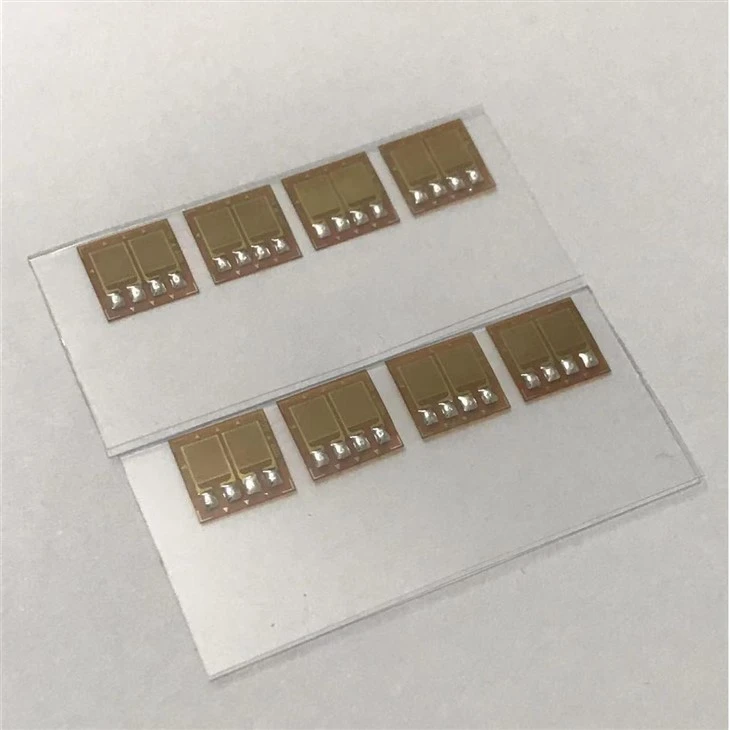

Half Bridge Double Parallel Strain Gauge consists of two linear strain gauges arranged in parallel. They can be utilized with various bridge circuit configurations. A common example is the bending full-bridge circuit, where two parallel strain gauges are positioned on opposite sides of the structure. Double parallel strain gauges are indispensable in scenarios demanding high precision, environmental resilience, and multi-axis strain analysis. Their versatility spans industries from heavy machinery to biomedical engineering, making them a cornerstone of modern strain measurement technology. Always refer to manufacturer guidelines for optimal installation and calibration.
Specifications:
Model: FB Series
Carrier Material: Phenolic Aldehyde /Polyimide/Epoxy
Grid Material: Foil (nickel copper alloy, Constantan or Karma)
Resistance: 350-1000 Ohm
Soldering point: 4 Tin points
Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃
Features:
Long terms stable performance
Suitable for multiple elastical surface: Steel, Alluminium or Ceramic, etc.
OEM/ODM available
Dimension:
| Model No. | Grid Size (mm) |
Base Size (mm) |
| BF( BA/BE)350-2FB-A | 2.0×3.2 | 5.7×7.7 |
| BF( BA/BE)350-3FB-A | 3.1×3.1 | 7.2×7.6 |
| BF( BA/BE)350-4FB-A | 4.0×2.7 | 8.1 ×6.9 |
| BF( BA/BE)350-6FB-A | 6.0×2.7 | 10.3×6.9 |
| BF( BA/BE) 1000-2FB-A | 2.0×3.2 | 5.7×7.7 |
| BF( BA/BE) 1000-3FB-A | 3.0×3.3 | 7.1 ×7.8 |
Applications:
Load Cells and Torque Sensors: For precise force or rotational torque measurement.
Structural Health Monitoring: Detecting strain in bridges, buildings, or aerospace components.
Material Testing/ Crash testing/ pressure analyasis: Evaluating stress-strain behavior in laboratories.
Note: Other models and sizes are available according to customer request
