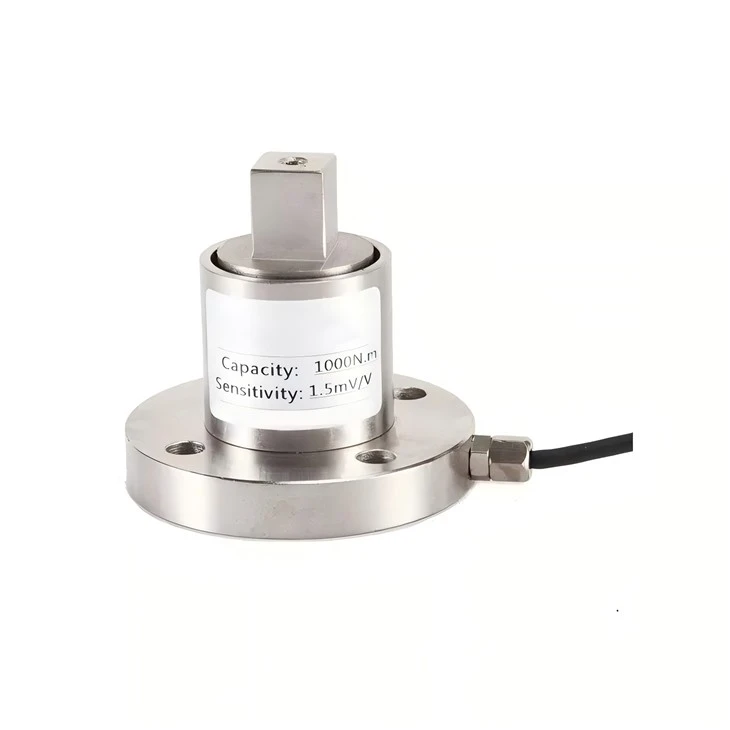

Static Torque Transducer for Industrial Calibration

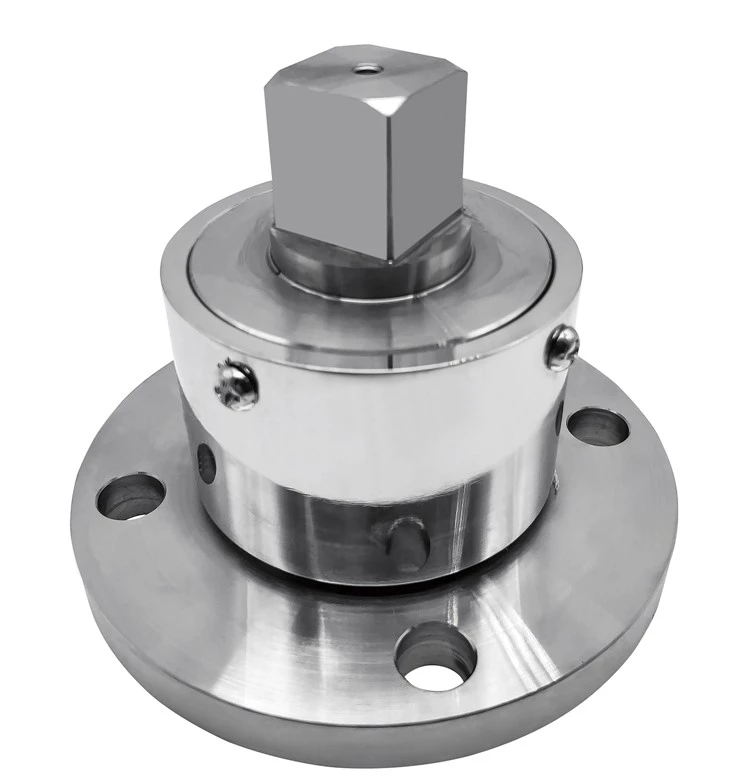

Model: ZNJ-103

A static torque sensor, also known as a reaction torque sensor, measures the twisting force on a non-rotating object or in a steady, slow-moving system. They are designed to measure the reaction torque, the twisting force generated against a fixed support, without measuring continuous rotation. These sensors are highly valued for their stability, precision, and durability.

How a static torque sensor works

Static torque sensors typically operate using strain gauge technology. The process works in a step-by-step manner:

1. The sensor is attached to a component or shaft where torque measurement is required.

2. When torque is applied, the internal elastic element of the sensor undergoes a slight mechanical deformation or twist.

3. Strain gauges, which are electrical resistors bonded to the elastic element, also deform. This deformation causes a change in their electrical resistance proportional to the applied torque.

4. A Wheatstone bridge circuit converts the resistance change into an electrical signal, typically a voltage.

5. This electrical signal is then amplified, processed, and translated into a precise torque reading.

product-268-267

◆ Dimensions:

product-610-163

Capacity Range (N.m)	VK	A	B	C	D
5-15	1/4"	52.5	10.5	7.5	8.5
20 - 50	3/8"	56	14	11	12.8
100	1/2"	60	18	15	17
200-500	3/4"	80	28	23	26
1000	1"	85	33	28	34

◆ Features and Applications

1. Applies resistance strain gauge integrated with circuit which is accurate ,stable, and of large measuring range.

2. Middle capacity static measuring, easy to install.

3. One end is with key (or external square key) joint , another end with flanged joint.

◆ Technical parameter

Parameters	Specification
Capacity	0~20,50,100,200,300,500Nm
Rated Output	1.5+10% mV/V
Zero Balance	±1%FS
Non Linearity	+0.1-0.3%FS
Hysteresis	±0.05%F.S
Rapeatability	0.05%F.S
Creep	0.03%F.S/30min
Tamp Effact On Output	0.03%F.S/10℃
Temp Effect On Zero	0.03%FS/10℃
lnput impedance	350/750±10Ω
Output impedance	350/700±50Ω
Raspones Fraquency	100μS
Insulation	≥5000MΩ/100V
Recommended Excitation	10V(DC)
Compensated Temp Range	-10 ~ 60℃
Operation Temp Range	-20 ~ 65℃
Safe Overload	150%F.S
Ultimate Overload	200%F.S
Cable Size	φ5.2 x 3 m
Cable Color Code	Input Red( +), Black(-)Output Green(+), white(-)
Material	Stainless steel/Alloy steel

Optional Accessories

	Torque meter, indicator Accessories: installation tools Torque value display only Cable; Torque sensor cable Optional: Support RS232
	Speed meter Accessories: installation tools Speed value display only Cable: Torque sensor cable Optional: RS232.
	PC Software 1, Support data display, storage, download. 2, Able to display torque, speed and power consumption data if the meter connected to it support those functions.
	Transmitters: For converting mv/v output to analogue output, like 0-5V / 0-10V/ 4-20mA
