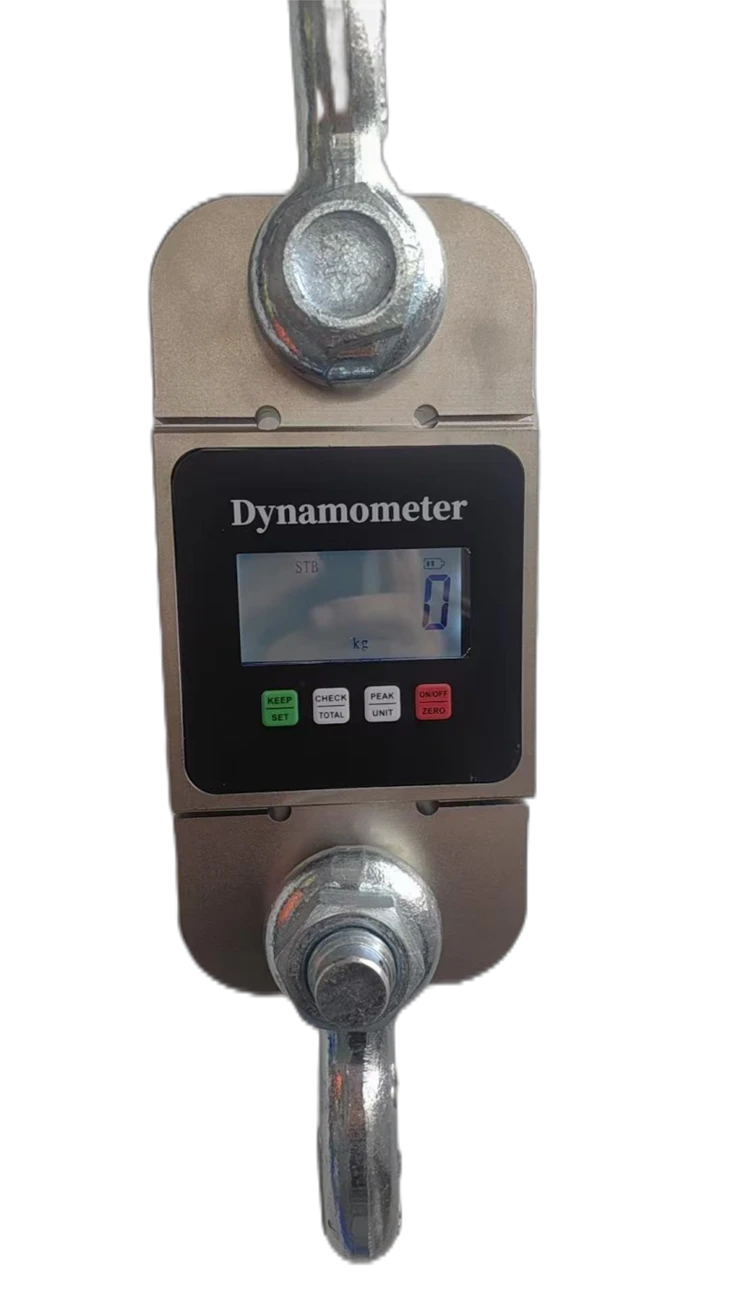

Dynamometer Smart Compact Crane Scale
Model: TCS-07
Features
◆ Capacity: 1t, 2t,3t,5t,10t,15t
◆ High-strength load receptor ◆ Alloy steel case
◆ American standard bow shackle and eye hook
◆ High capacity rechargeable battery
◆ Infrared remote control
◆Full Steel Structure,High Strength
◆With Self 30mm or 40mm LED Display
◆Anti-dust, water-proof and anti magnetic
◆ Multi function of Hold, Tare, Zero etc.
◆ Aluminum die casting alloy housing with strength appearance
| ACCU | Comply with the international Grade III standard (GT/T11883-2002). |
| WTPBC | About 60 hours |
| SO | 150%F.S |
| DO | 300%F.S |
| OAT | -25-50℃ |
| AT | ≤90%R.H |
| DS | LCD |
| RST | <5.0S |
Series specifications (dimensions are for reference only)
| Specifications (t) | Division (kg) | Size(mm) |
Least count (kg) |
Overload coefficient |
display |
battery |
||||
| length | Lifting ring height | width | Chassis height | Chassis length | ||||||
| A | B | C | D | E | ||||||
| 3 | 1 | 560 | 145 | 75 | 85 | 55 | 20 | 3D | LCD | AA dry battery |
| 5 | 1 | 570 | 145 | 75 | 85 | 55 | 40 | 3D | LCD | AA dry battery |
| 10 | 2 | 590 | 120 | 88 | 90 | 55 | 80 | 3D | LCD | AA dry battery |
| 20 | 5 | 760 | 150 | 123 | 125 | 55 | 100 | 3D | LCD | AA dry battery |
| 30 | 5 | 825 | 155 | 130 | 137 | 55 | 100 | 3D | LCD | AA dry battery |
| 50 | 5 | 1145 | 260 | 190 | 150 | 55 | 200 | 3D | LCD | AA dry battery |
