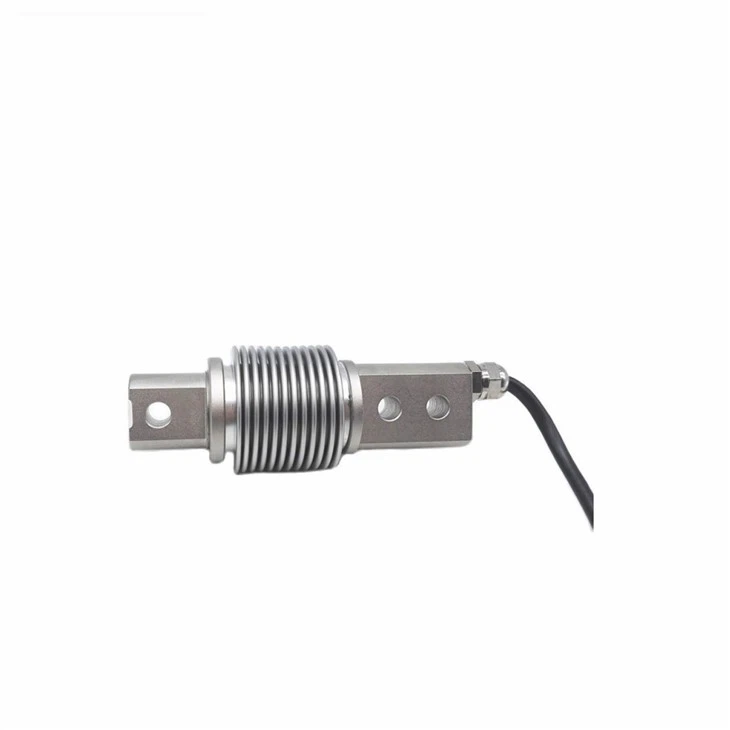

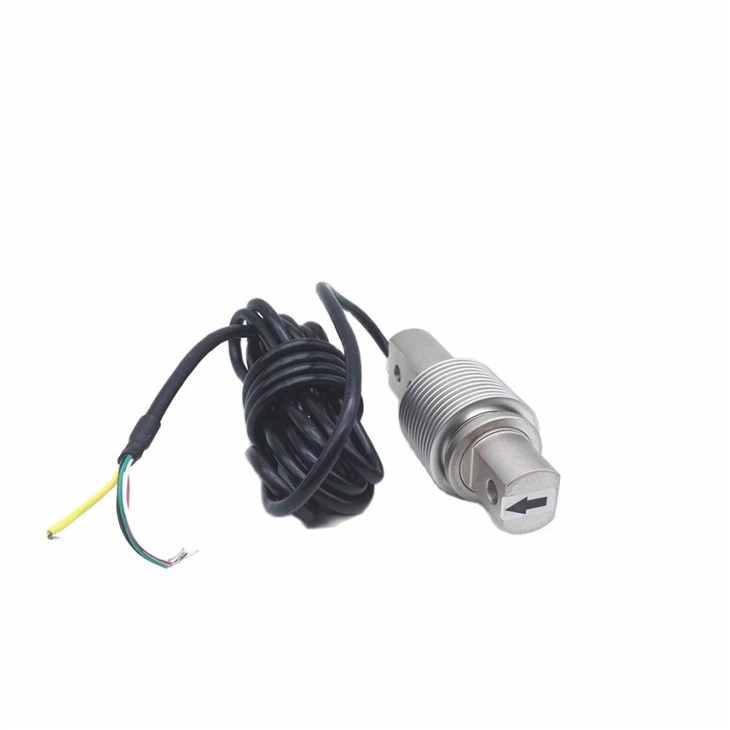

Bellows Cantilever Shear Beam Load Cells
Model: SD-05
CAPACITY: 500kg-2000kg
Features:
Single Shear Beam Load Cell, Capacity range from 100kg to 10,000kg
Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
hermetically welded, oil-proof, waterproof and anti-corrosion
APPLICATIONS: Indsustrial process weighing control, batching control system and testing equipment other weighing machine
Dimensions:(mm)
Parameters:
|
Precision: |
C3 |
||
|
Rated Output: |
2mv/v±0.003 |
||
|
Creep(%F.S/30min): |
±0.02 |
||
|
Zero balance(%F.S): |
±1.0 |
||
|
Input resistance: |
350±5 |
||
|
Output resistance: |
350±5 |
||
|
Insulation resistance: |
≥5000(100VDC) |
||
|
Temp. effect on span(%F.S/10℃): |
±0.017 |
||
|
Temp. effect on zero(%F.S/10℃): |
±0.02 |
||
|
Use temp. range(℃): |
-20～+55 |
||
|
Excitation voltage(V): |
9～12(DC) |
||
|
Safety overload (%F.S) |
150% |
||
|
Ultimate overload (%F.S) |
200% |
||
| Ingress protection |
IP67 |
||
|
Cable Length: |
3 meters -10 meters |
||
| Install | Hole | ||
|
Wire Connection Method |
|||
|
RED=Input+ |
BLACK=Input- |
GREEN=Output+ |
WHITE=Output- |
