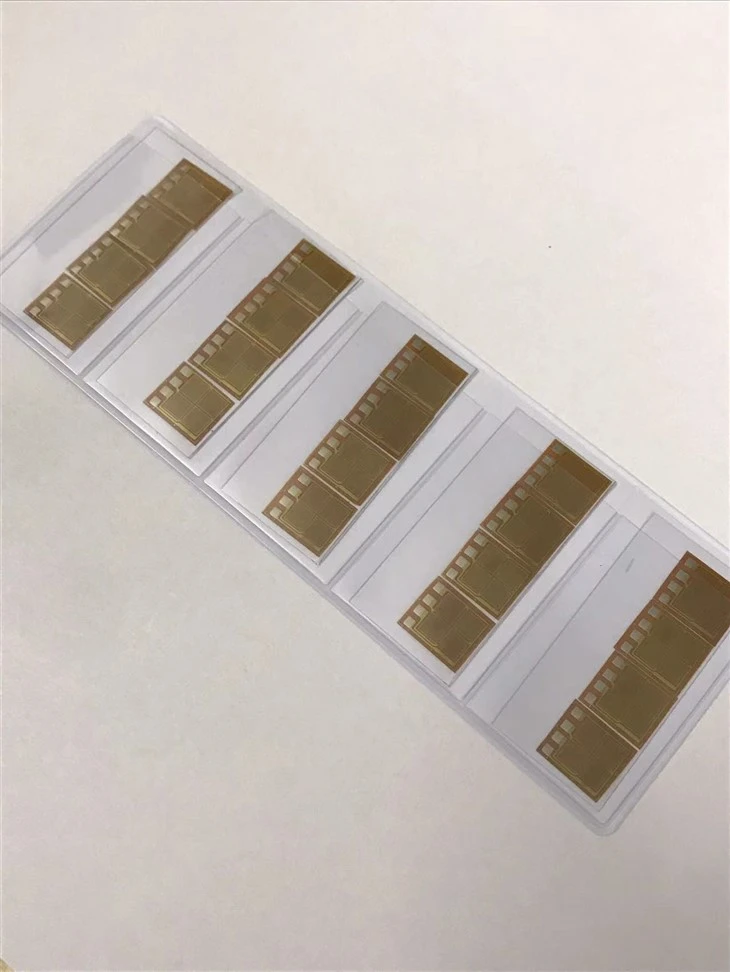

Full Bridge Strain Gauges With Polyimide Or Phenolic Base

Full Bridge Strain Gauges with Four Measuring Grids

Model: EB -A series
Carrier Material: Imported Phenolic Aldehyde/Polyimide/Epoxy
Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
Resistance: 350,500,1000 Ohm
Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃

Each package 40 pcs, can be soldered copper wire, good performance
Four (4) soldering points

Applied to steel or alluminum surface

Note: Other models and sizes are available according to customer request
