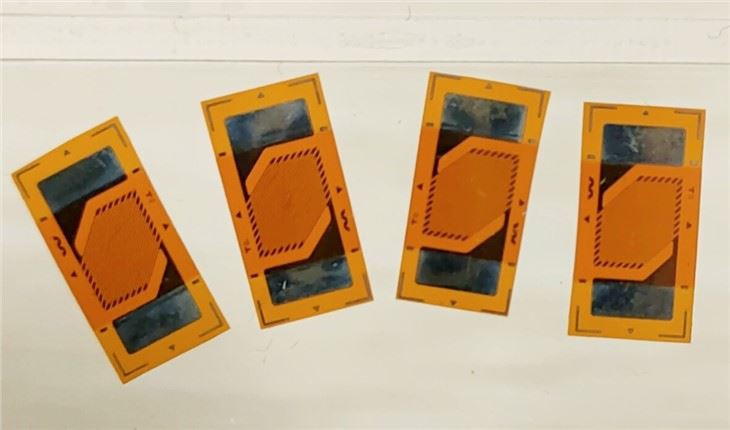

Product Description:
With a hysteresis of ±0.05% Full Scale, the Foil Strain Gauge is able to provide precise measurements of the strain of an object. This makes it ideal for use in applications where accuracy is essential, such as in the aerospace, automotive, and construction industries.
The Foil Strain Gauge is designed to operate in a wide range of temperatures, from －20 to ＋80℃. This means it can be used in both hot and cold environments without any loss of accuracy or performance.
Measuring just 5 mm x 5 mm in size, the Foil Strain Gauge is compact and easy to install. It can be easily attached to the surface of an object using adhesive or solder, making it a versatile and flexible solution for a wide range of applications.
There are two types of strain gauges available: full bridge strain gauge and half bridge strain gauges. The Foil Strain Gauge operates on a full bridge circuit, which means it is able to measure the strain of an object more accurately than a half bridge strain gauge.
In summary, the Foil Strain Gauge is a highly accurate and reliable load cell sensor that is designed for use in a wide range of applications. Its compact size, wide temperature range, and full bridge circuit make it a versatile and flexible solution for measuring the strain of an object.
Parameters:
| MODEL | Grid Size (mm) |
Base Size (mm) | Grid Distance (mm) |
| BF( BA/BE)350-1AB | 1.6×1 .5 | 9.6×2 .7 | / |
| BF( BA/BE)350-3AB | 3.8×3 .1 | 8.0×4.1 | / |
| BF( BA/BE) 1000-3AB | 3.8×3 .1 | 8.0×4.1 | / |
