Linear Bridge Foil Strain Gages for Load Cells AB Series

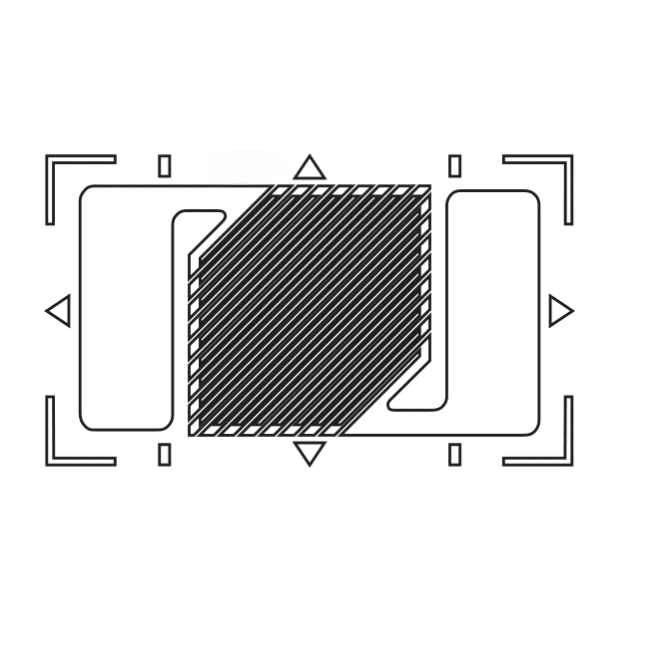

Linear Bridge Foil Strain Gauges

• Model: AB series


• Carrier Material: Phenolic Aldehyde/Polyimide/Epoxy


• Measuring Material: Foil(nickel copper alloy, Constantan or Karma)

• Resistance: 120-1000 Ohm


• Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃

• Each package 40 pcs, can be soldered copper wire, good performance

• Fully encapsulated Constantan foil strain gauges with modified Phenolic backing.

• Offers both Self-Temperature (or elastic modulus) and creep compensation simultaneously.

• Has high accuracy and excellent stability but only at room temperature.

• Especially suitable for accuracy class 3 transducers.

• Easy to use and available in a resistance range of 60 up to 1000Ω

  Specification<

• MODEL	Grid Size (mm)	Base Size (mm)	Grid Distance (mm)
  BF( BA/BE)350-1AB	1.6×1 .5	9.6×2 .7	/
  BF( BA/BE)350-3AB	3.8×3 .1	8.0×4.1	/
  BF( BA/BE) 1000-3AB	3.8×3 .1	8.0×4.1	/
