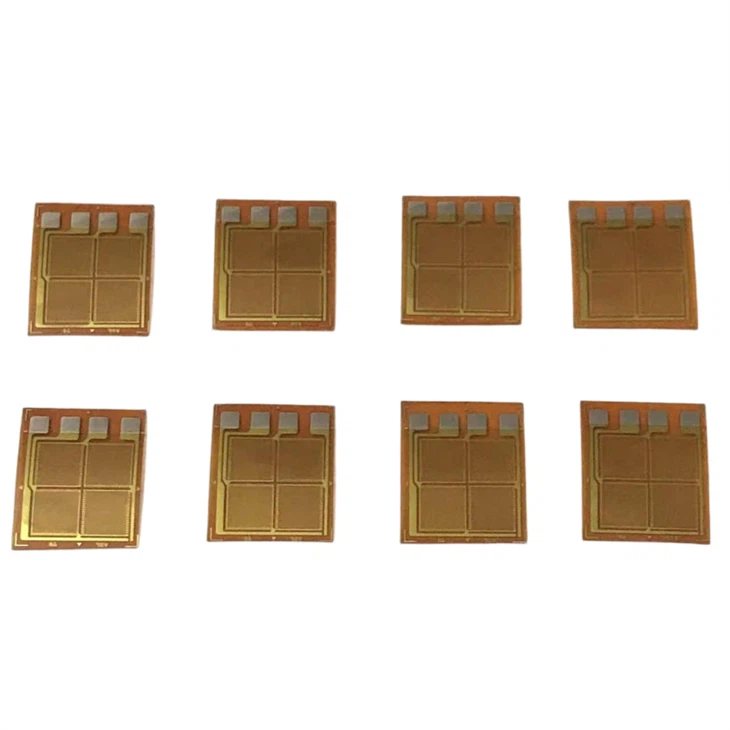

Full Bridge Foil Strain Gauges EB Series
Model: EB Series / EB-A Series
Carrier Material: Phenolic Aldehyde /Polyimide/Epoxy
Measuring Material: Foil (nickel copper alloy, Constantan or Karma)
Elements：Four elements
Resistance: 350-1000 Ohm
Operational temperature －30～＋80℃, Temperature compensation range ＋10～＋80℃
Four (4) solder points, long terms stable.
Application:
For manufacturing of weighing load cell,torque transducer or pressure sensor;
For experimental use;
| Model | Grid Size (mm) |
Base Size (mm) | Grid Distance (mm) |
| BF( BA/BE)350-3EB | 2.25×2.65 | 9.2×7.7 | / |
| BF( BA/BE)1000-3EB | 2.25×2.65 | 9.2×7.7 | / |
| BF( BA/BE)350-3EB-A | 2.25×2.65 | 9.2×7.7 | / |
| BF( BA/BE)1000-3EB-A | 2.25×2.65 | 9.2×7.7 | / |
Note: Other models and sizes are available according to customer request.
